FDRILL and FORMTAP SYSTEMS

FDRILL and FORMTAP SYSTEMS ENHANCE DRILLING AND TAPPING IN THIN WALL APPLICATIONS

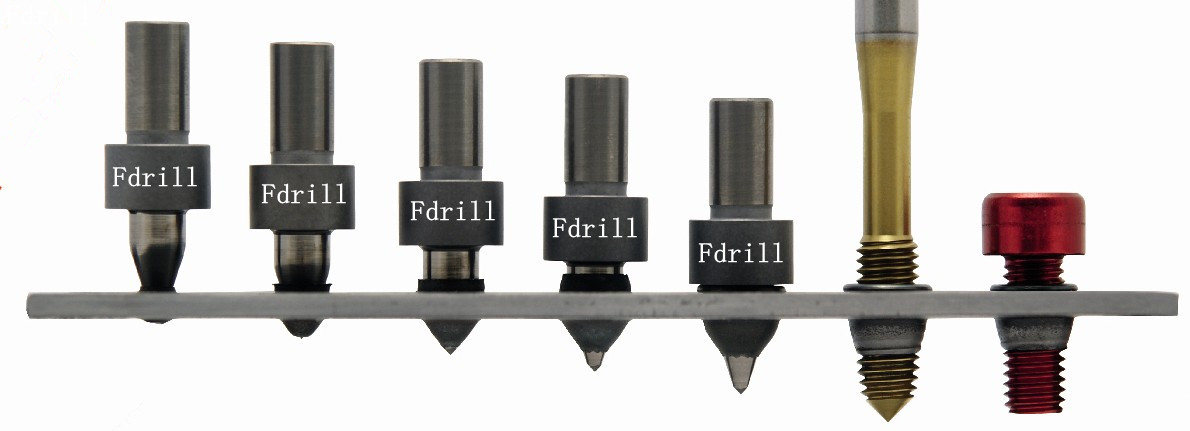

The Fdrill system is designed to provide a cost saving and problem solving method for the formation of malleable metals. The Fdrill thermal friction drill uses a combination of the rotation speed and thrust pressure to locally heat the material, forming a bush in various thicknesses of metal.

Advantages of the system include:
Consistently accurate hole sizes.
Bush length approximately three times original thickness.
Short cycle time of between two and six seconds, depending on the diameter and thickness of material.

Machines that are capable of utilizing the Fdrill system range from standard drill presses to NC/CNC automated machine centers, with motor capacities between 1.5 kw and 3.0 kw and speeds from 1000 RPM to 3500 RPM. Friction drilling is designed for a range of materials including mild steel, stainless steel, copper, brass and aluminum. Fdrill tools are available in sizes from 0.06” to 2” and can hold 0.0005” repeatability. Special sizes are available on request.

Also featured by the company is Formtap, a cold-form tapping system used as a secondary operation, creating a chip-free thread in the bush. Flowtap is designed to increase the depth of threads formed in thin metal.

Advantages of cold-form tapping in conjunction with friction drilling are:

Increased pull out strength of the formed thread as the process reforms the material in the bush, without cutting into the natural grain structure of the metal.
Precise formation of the thread within the bush.
Increased productivity, through high speed and long tool life.
Chip-free process, therefore no waste to remove.
Designed for most tapping machines.
Suitable for all materials that can be friction drilled.
